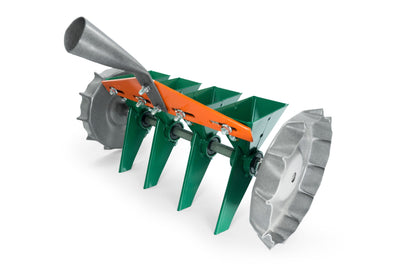

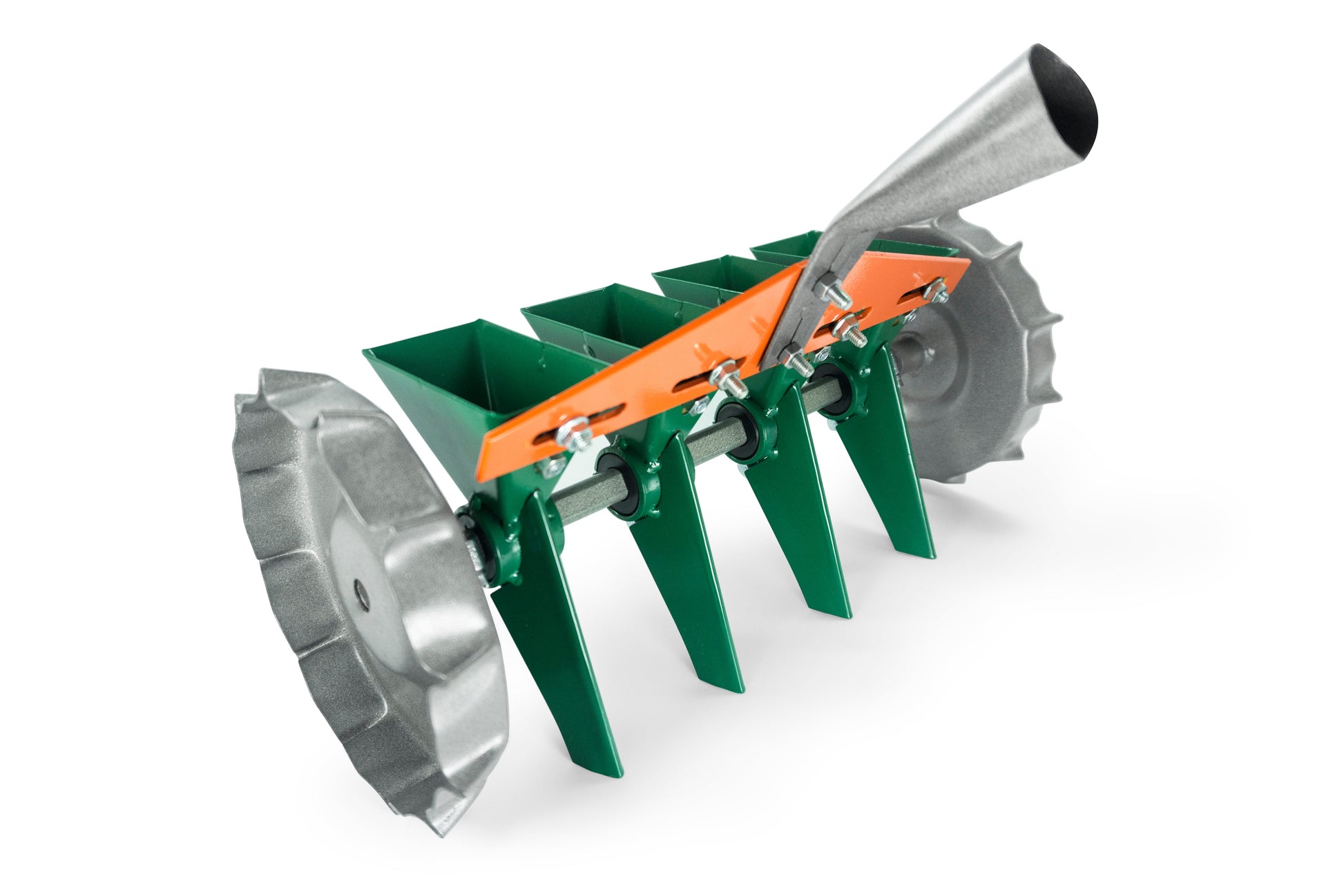

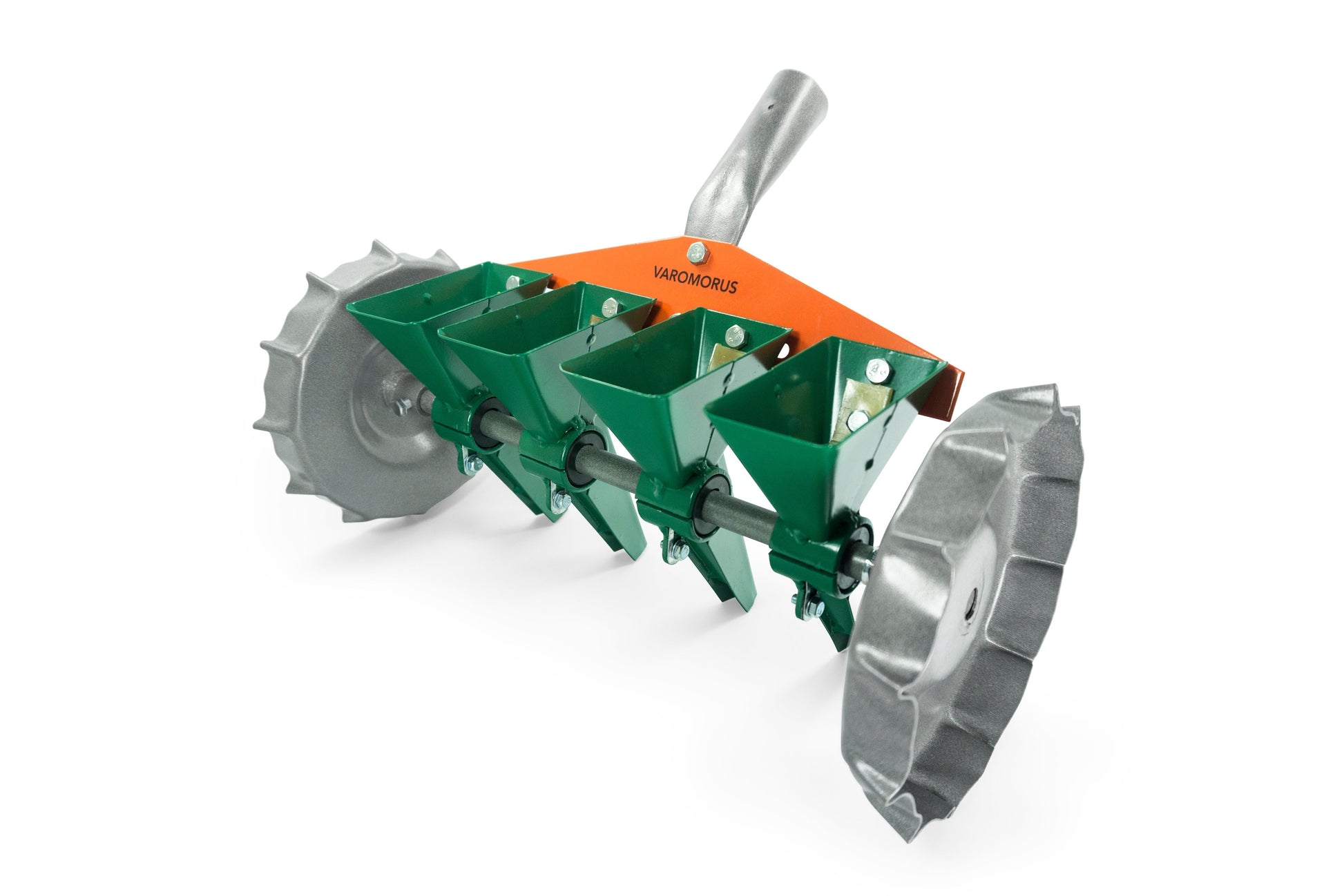

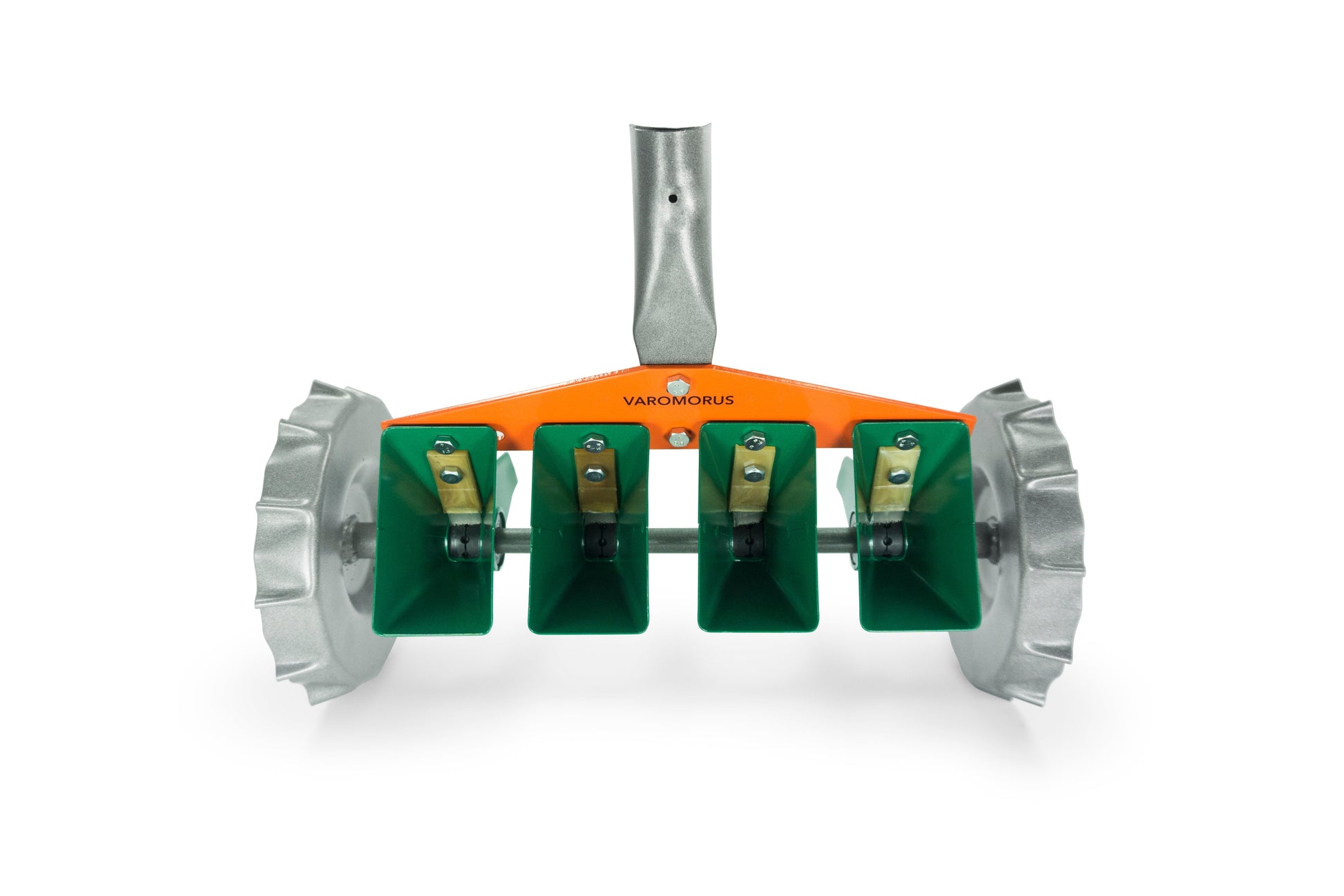

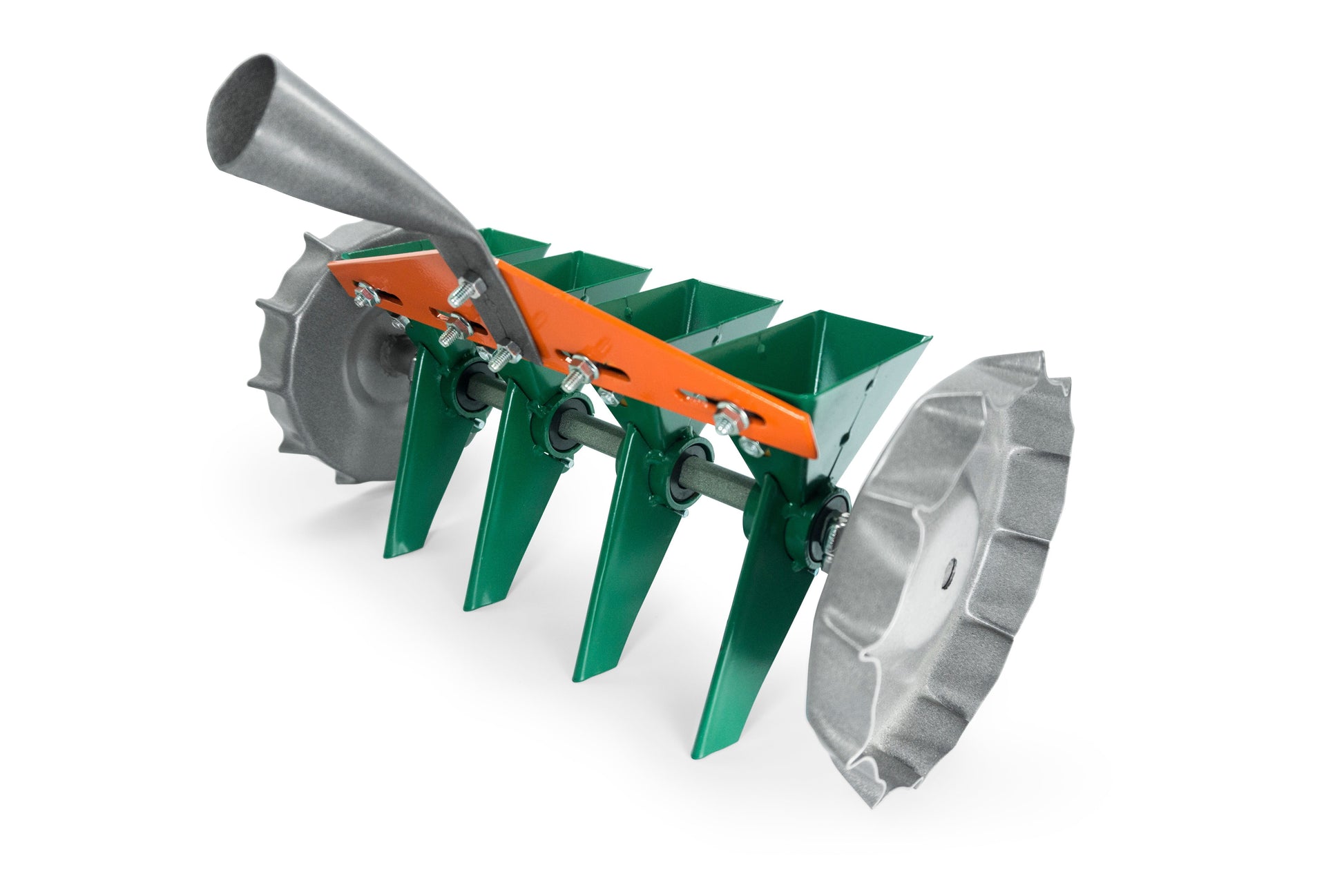

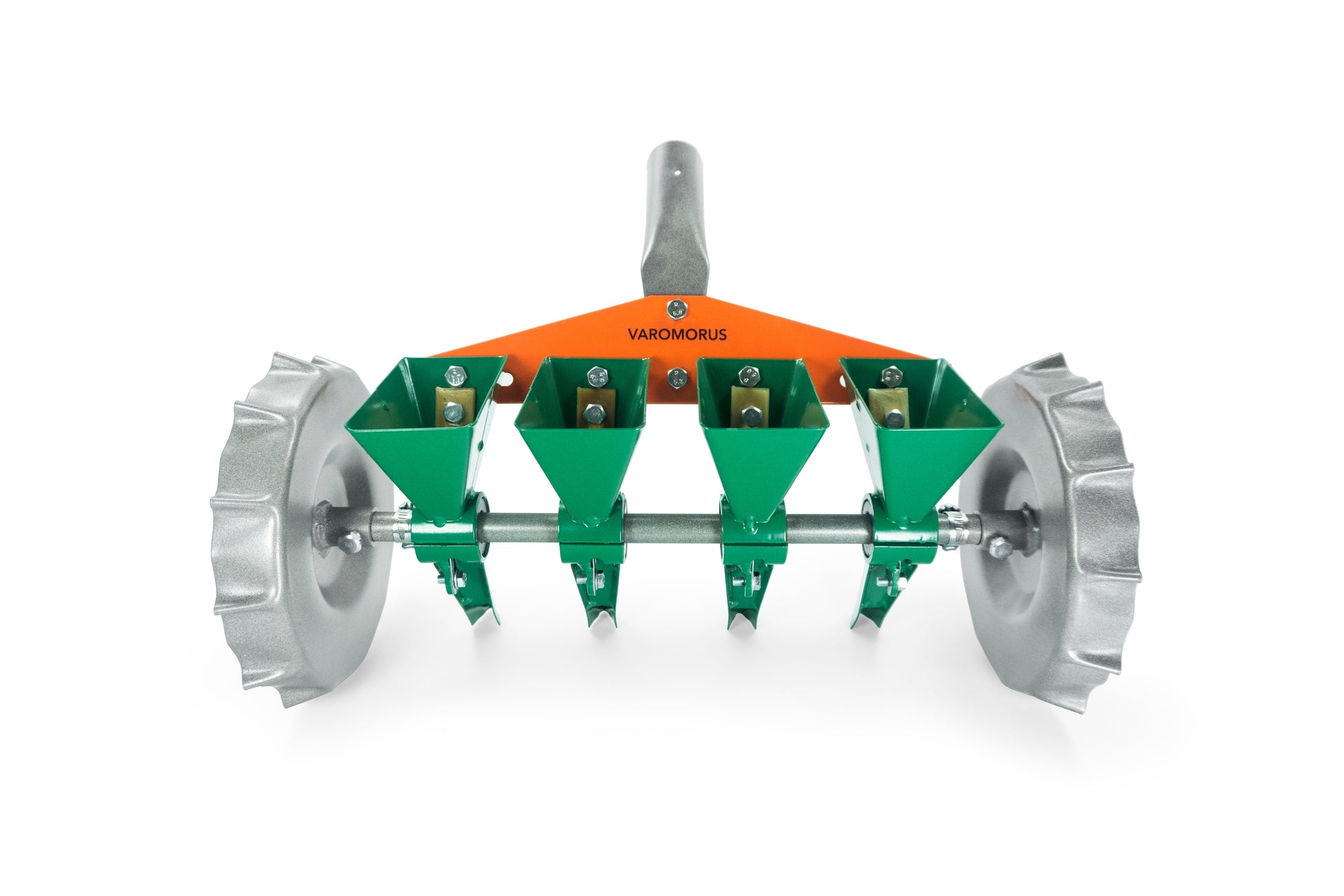

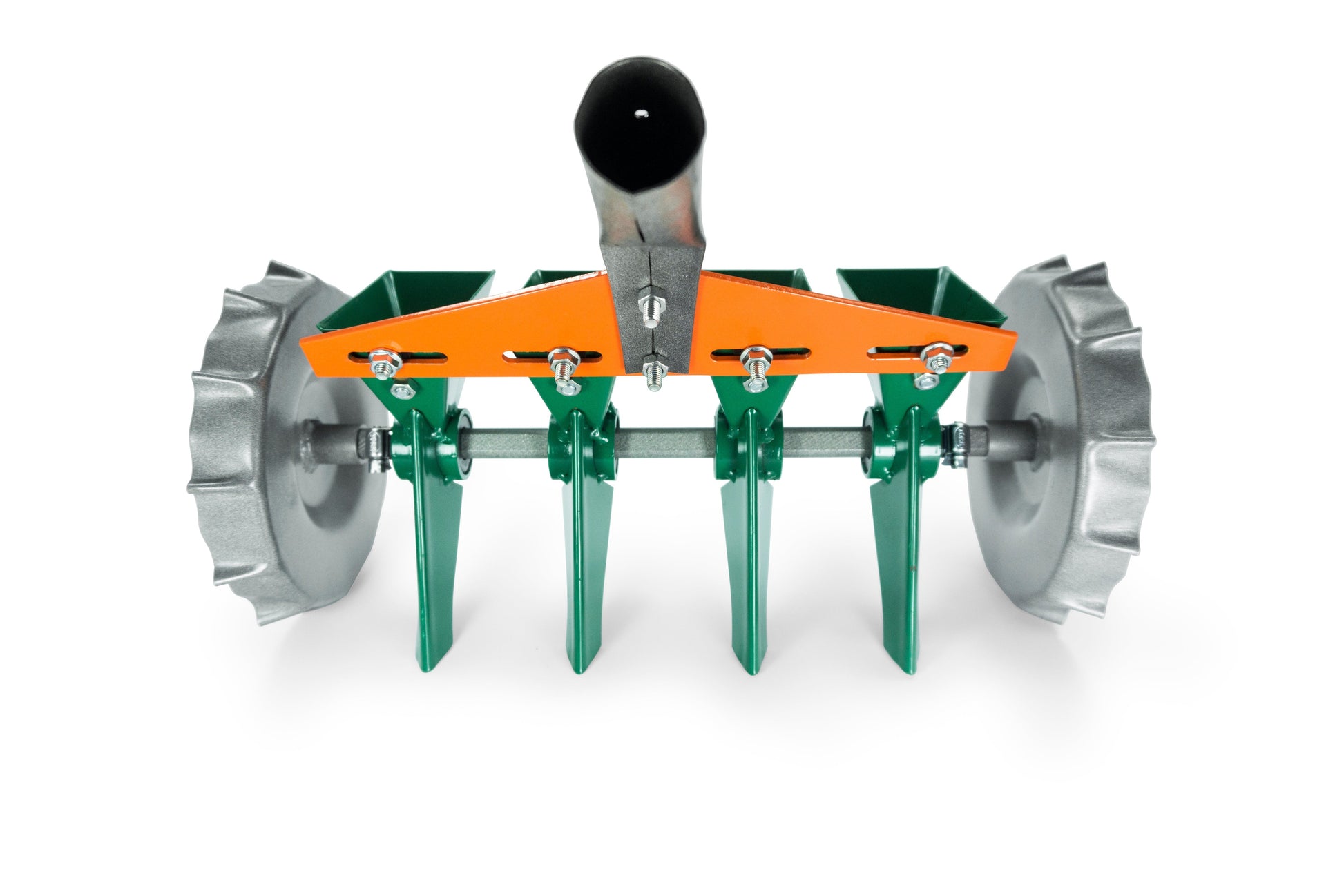

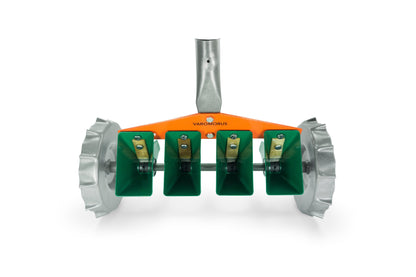

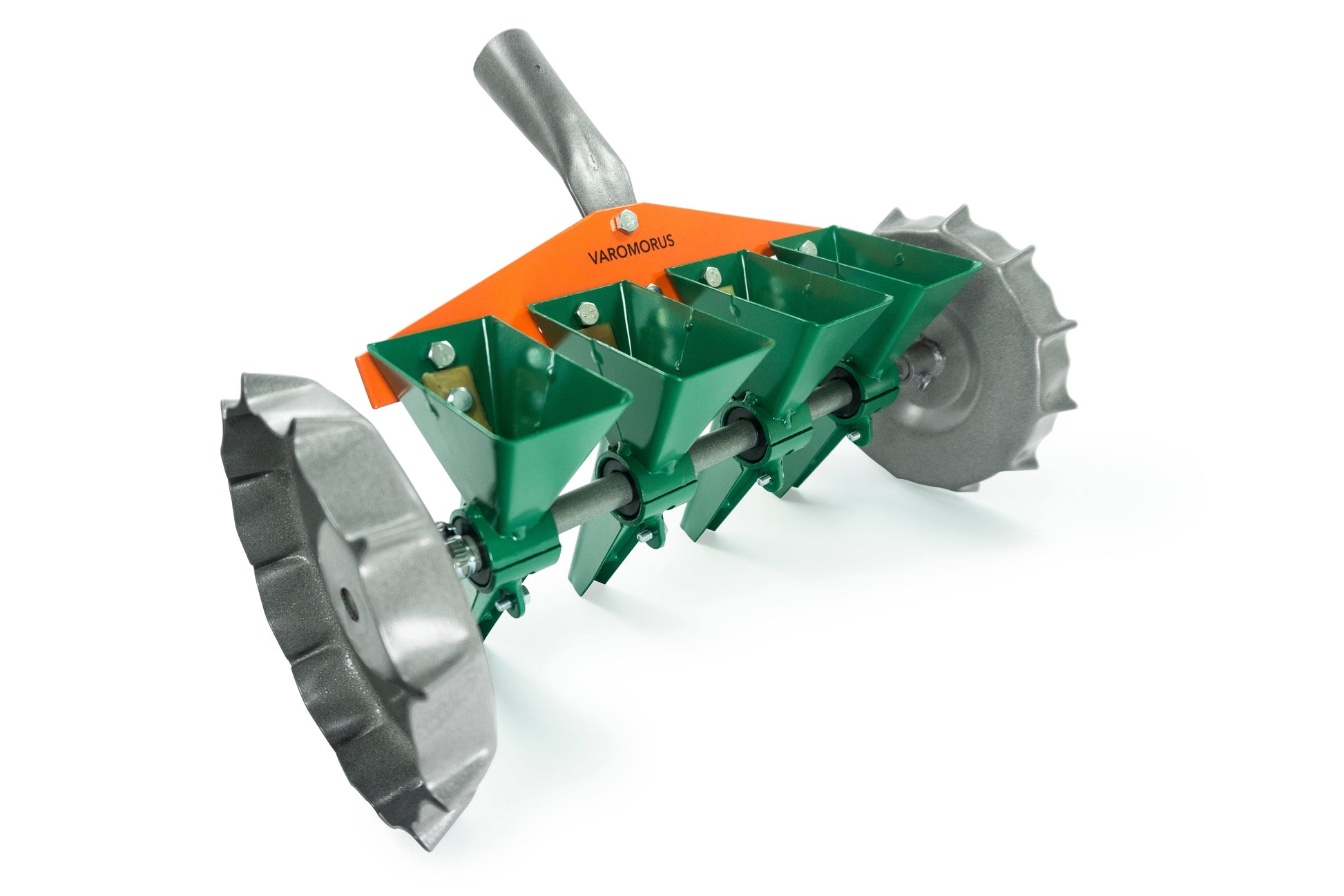

VAROMORUS METAL PRECISION SEEDER VEGETABLE 4-ROW MANUAL PLANTER

This garden sowing machine - is a universal tool that is used for planting different kinds of vegetables (such as - oats, cucumbers, tomatoes, beets, onions, radishes, carrots, etc.) in greenhouses and open ground.

How does it work?

The principle of the seeder's functioning is based on the rotation of the sowing hub. The seed of the crop gets into its calibrated deepening. The brush stopper leaves in every deepening of sowing hub one seed or few (depending on its regulation) which is thrown down into the furrow by the flip-out ejector of the original construction. The density of sowing depends on the space between deepenings in the sowing hub and the regulation of the brush stopper.

Preparing for the work.

To set up the necessary sowing rate one needs to place a proper sowing hub on the axle. Adjust the position of a sowing brush limiter according to the necessary seeds amount. Check and correct, if necessary, the sowing rate by means of the seeder rolling with seeds along the plane surface.

Technical specifications:

A built-up module design.

A stamped steel profile.

4 simultaneously operated rows.

The width of the guard is 60 mm.

- Height - 4,7 inches / 120 mm.

- Length - 5,11 inches / 130 mm.

- Width - 14,6 inches / 370 mm.

- Weight - 5,9 lbs / 2,7 kg

Material: Metal

The seeder is provided with a brush limiter and a flip-out seed ejector, a set of sowing drums, brushes.

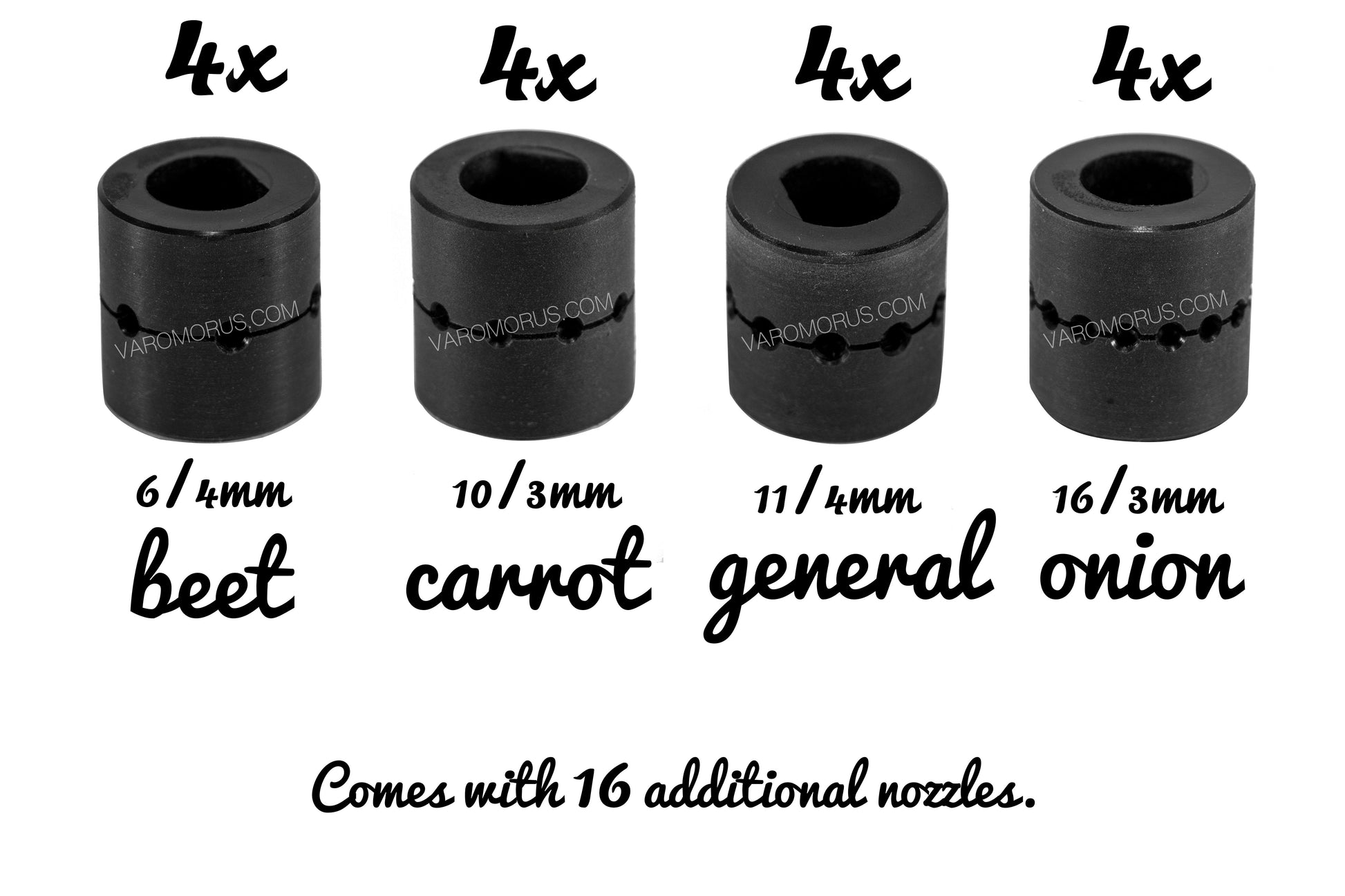

Comes with 16th nozzles, User manual.
