Stratosphere Distribution

Standard Duty Desiccant Systems

Standard Duty Desiccant Systems

$985.00 CAD
$985.00 CAD
Sale Sold out
Shipping calculated at checkout.

  • 3-stage standard duty desiccant system

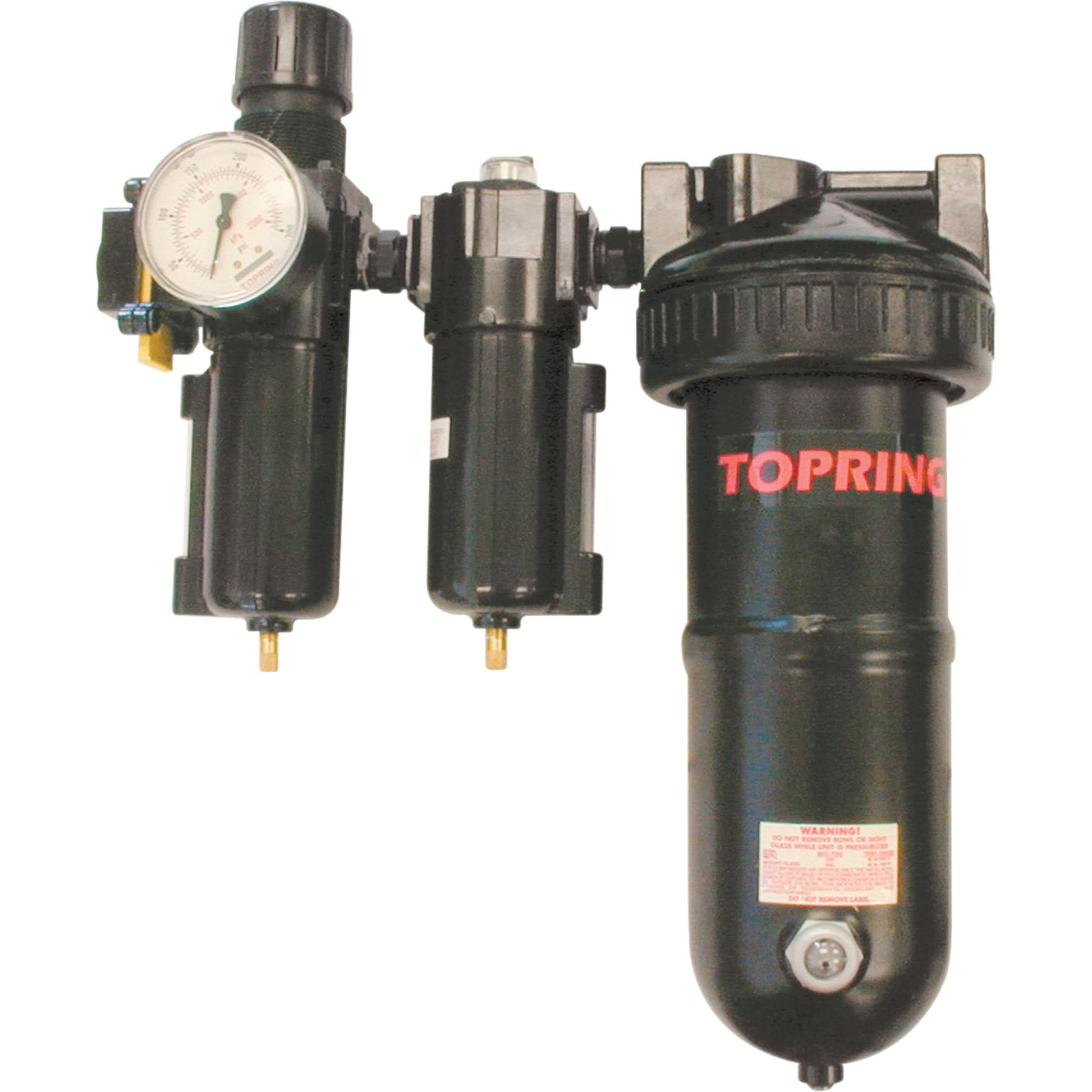

  • The standard duty desiccant system offers the same benefits as the heavy-duty system, but is designed for less frequent use. It is also a 3-stage system engineered to provide high quality air. It removes dirt, water, oil and uncondensed moisture from compressed air lines. Very efficient at protecting expensive and sensitive air tools. Does not require electricity or refrigerants to provide extremely dry compressed air. Silica gel provides maximum absorption, which can be monitored through a small sight glass. When the blue gel turns pink, the gel is then saturated with water and should be replaced with fresh gel to allow the system to remain effective. System consists of a filter (5 microns) with auto drain, coalescing filter (0.1 microns) with auto drain, desiccant dryer, filter/regulator with gauge and a safety slide valve.; SPECIFICATIONS; Max. Working Pressure: 175 PSI; Port Size:1/2" NPT; Air Flow Capacity:20 SCFM; ; 3 STAGE FILTRATION:; 1.Integral filter/regulator removes particulates down to 5 microns in size, to protect the regulator, which then reduces the pressure to the desired pressure setting; 2.Coalescing filter removes 99.99% of oil aerosols and microscopic particles down to 0.1 microns in size; 3.Desiccant dryer removes all remaining water vapour and a 40 micron filter element removes traces of any desiccant dust before it leaves the system

Specifications

Max. PSI
175 PSI
Port Size
1/2" NPT
No. Of Stages
3-Stage
Air Inlet
1/2" NPT
