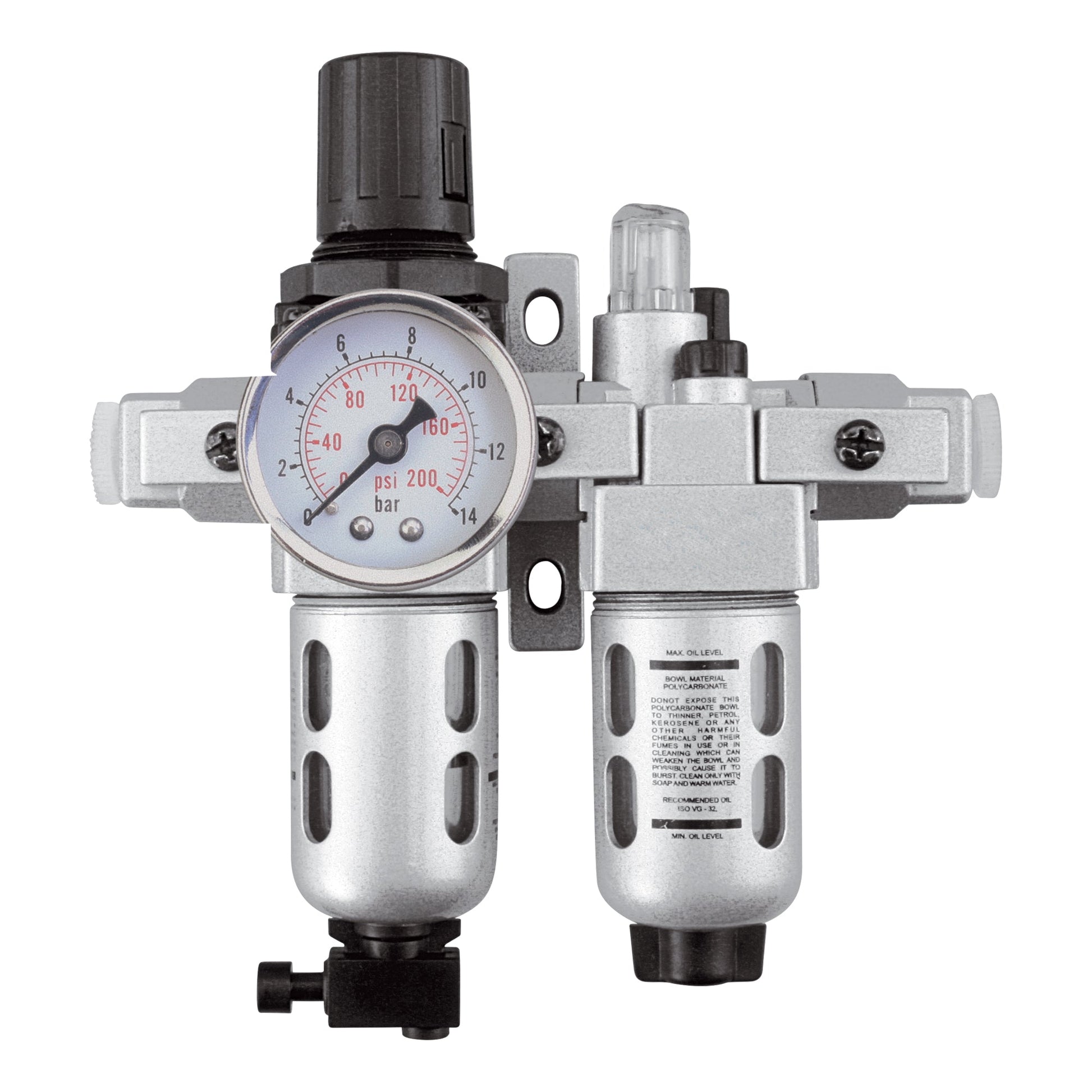

Modular Filter/Regulator & Lubricator (Gauge Included), 3/8" NPT

Modular Filter/Regulator & Lubricator (Gauge Included), 3/8" NPT

$155.00 CAD
$0.00 CAD $155.00 CAD
Sale Sold out
Shipping calculated at checkout.
Size

Low stock
  • Space-saving, two-piece combination is a popular air preparation unit
  • Attached in series using spacers and piping adapters, which make the two components easily removable and mountable without disturbing the pipe line
  • Come complete with a wall mounting bracket
  • Regulators are used to maintain a steady outlet pressure, unaffected by variations or fluctuations in the inlet pressure
  • Filter used to separate dust, dirt, moisture and other contaminants from compressed air
  • Filter features press-type manual drain with nighttime drain feature, which automatically drains off the bowl once the compressed air supply to the filter is switched off
  • Lubricator used to feed lubricants to pneumatic equipment and maintain a constant oil-to-air density over a wide range of flow
  • Fog/Micro Mist type lubricator, up to 50' pipe runs
  • Connection Size: 3/8" NPT
  • Max. Air Flow: 44 SCFM @ 105 PSI
  • Operating Pressure: 7-145 PSI
  • Bowl Material: Polycarbonate
  • Bowl Capacity: 1.93 fl. oz.
  • Filter Bowl Capacity: 1.08 oz.
  • Lubricator Bowl Capacity: 1.93 oz.
  • Series: FRL200
