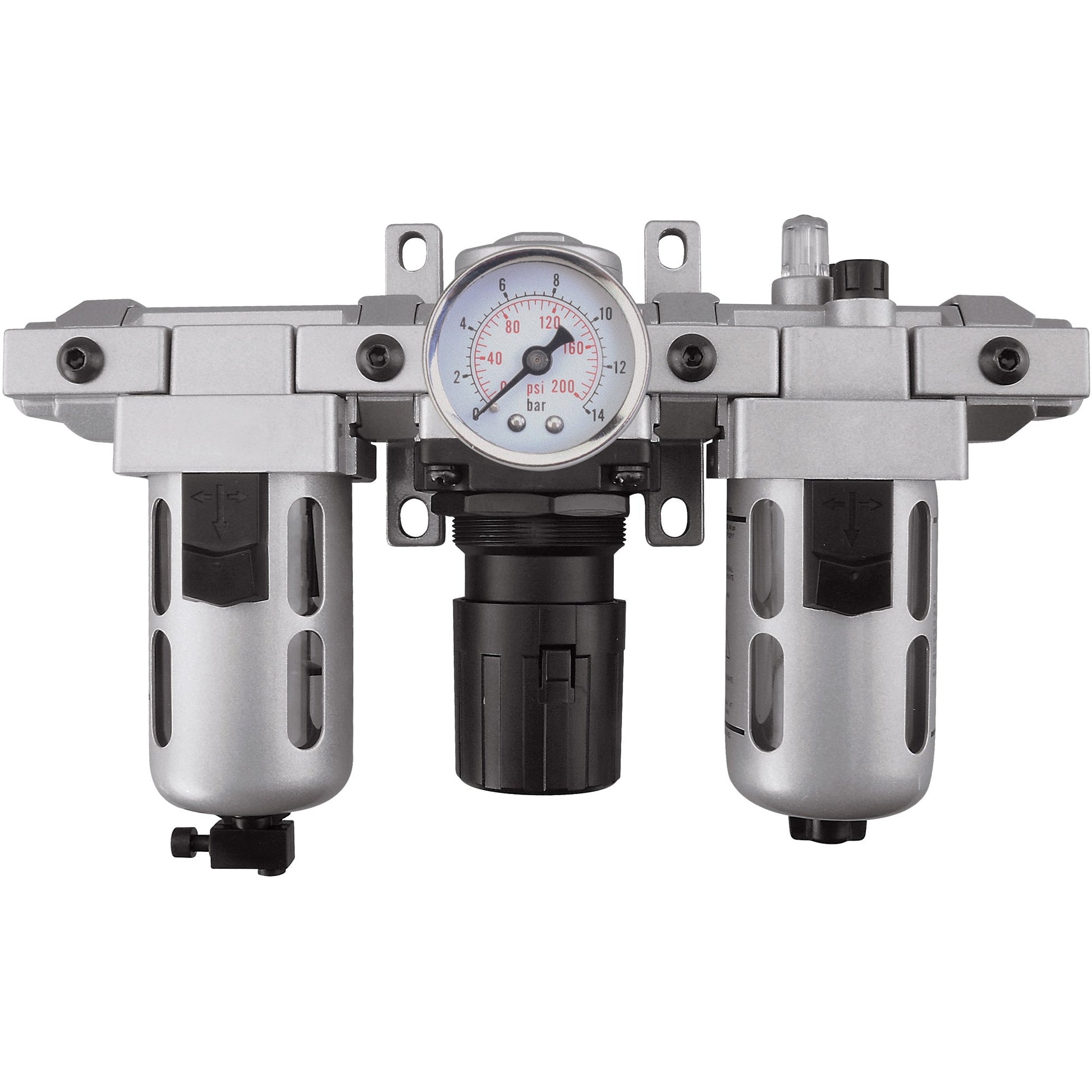

Modular Filter, Regulator & Lubricator (Gauge Included), 1/4" NPT

Modular Filter, Regulator & Lubricator (Gauge Included), 1/4" NPT

$142.00 CAD
$0.00 CAD $142.00 CAD
Sale Sold out
Shipping calculated at checkout.
Size

In stock
  • Assembly of all three individual components
  • Components are attached in series using spacers and piping adapters, which make the individual components easily removable and mountable without disturbing the pipe line
  • Comes complete with wall mounting bracket
  • Regulators are used to maintain a steady outlet pressure, unaffected by variations or fluctuations in the inlet pressure
  • Filter used to separate dust, dirt, moisture and other contaminants from compressed air
  • Filter features press-type manual drain with nighttime drain feature, which automatically drains off the bowl once the compressed air supply to the filter is switched off
  • Filter has sintered bronze, 40-micron filtering element
  • Lubricator used to feed lubricants to pneumatic equipment and maintain a constant oil-to-air density over a wide range of flow
  • Fog/Micro Mist type lubricator, up to 50' pipe runs
  • Air filter, regulator and lubricator come with NPT threads and gauge
  • Connection Size: 1/4" NPT
  • Max. Air Flow: 18 SCFM @ 105 PSI
  • Operating Pressure: 7-145 PSI
  • Bowl Material: Polycarbonate
  • Bowl Capacity: 0.68 fl. oz.
  • Filter Bowl Capacity: 0.30 oz.
  • Lubricator Bowl Capacity: 0.68 oz.
  • Series: FRL100
