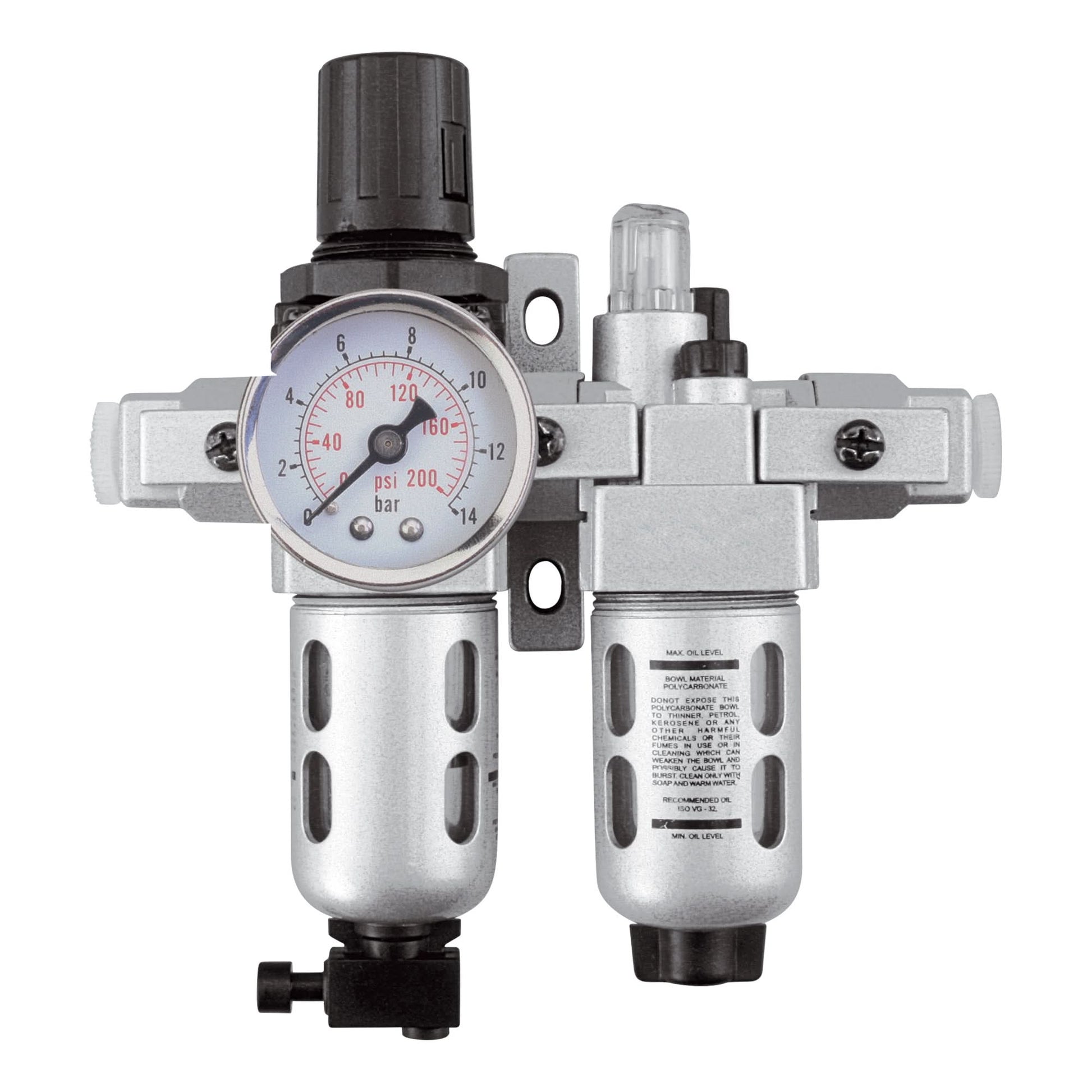

Modular Filter/Regulator & Lubricator (Gauge Included), 1/2" NPT

Modular Filter/Regulator & Lubricator (Gauge Included), 1/2" NPT

$230.00 CAD
$230.00 CAD
Sale Sold out
Shipping calculated at checkout.

  • Space-saving, two-piece combination is a popular air preparation unit
  • Attached in series using spacers and piping adapters, which make the two components easily removable and mountable without disturbing the pipe line
  • Come complete with a wall mounting bracket
  • Regulators are used to maintain a steady outlet pressure, unaffected by variations or fluctuations in the inlet pressure
  • Filter used to separate dust, dirt, moisture and other contaminants from compressed air
  • Filter features press-type manual drain with nighttime drain feature, which automatically drains off the bowl once the compressed air supply to the filter is switched off
  • Lubricator used to feed lubricants to pneumatic equipment and maintain a constant oil-to-air density over a wide range of flow
  • Fog/Micro Mist type lubricator, up to 50' pipe runs

Specifications

Connection Size
1/2" NPT
Max. Air Flow
99 SCFM @ 105 PSI
Operating Pressure
7-145 PSI
Bowl Material
Polycarbonate
Bowl Capacity
5.17 fl. oz.
Filter Bowl Capacity
1.50 oz.
Lubricator Bowl Capacity
5.17 oz.
Series
FRL300
Country Of Origin
India
