Stratosphere Distribution

Metal Lathe/Taper Attachment & DRO, 75" L x 32" W x 53" H

Metal Lathe/Taper Attachment & DRO, 75" L x 32" W x 53" H

$14,179.00 CAD
$14,179.00 CAD
Sale Sold out
Shipping calculated at checkout.

  • Powerful 2 HP motor

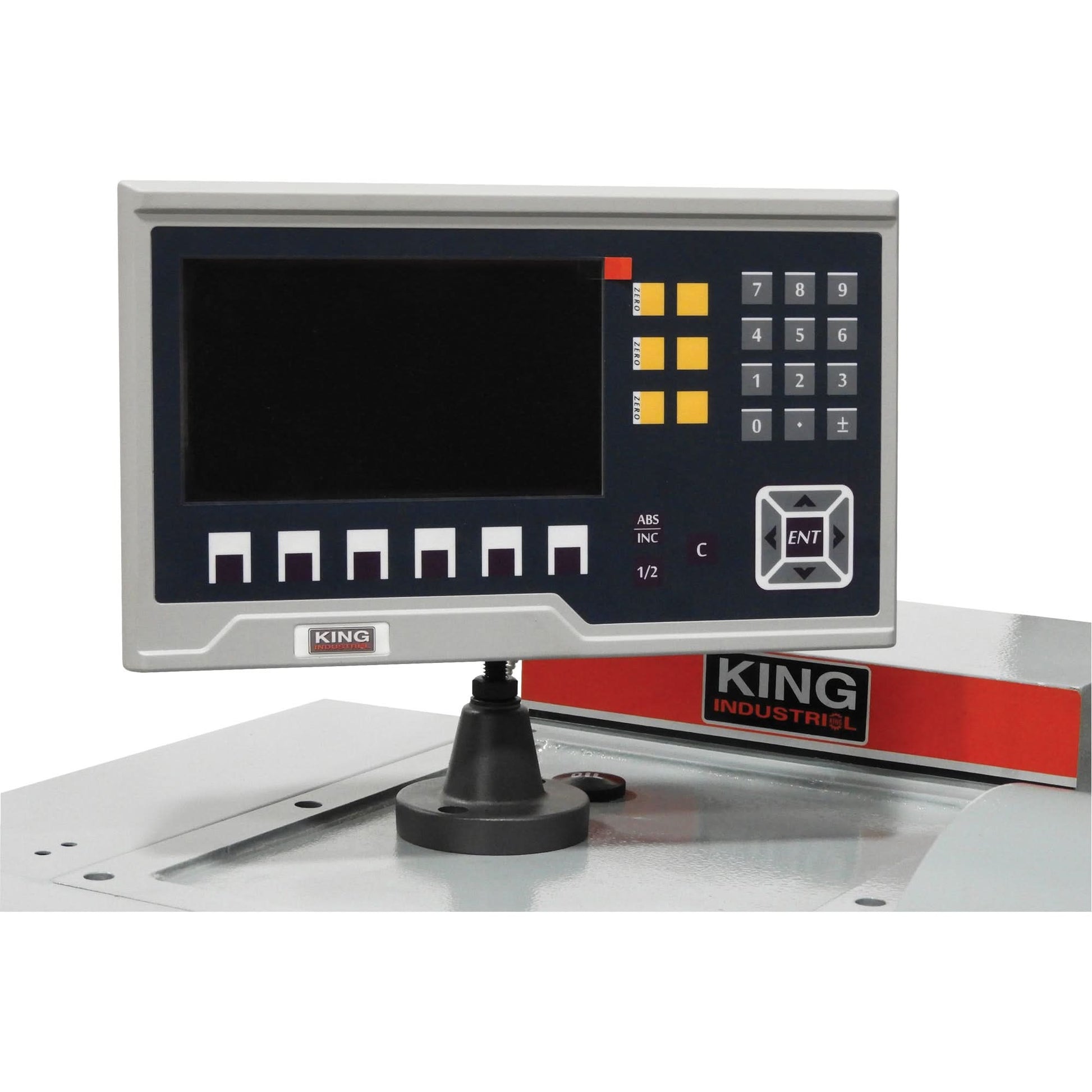

  • 2 axis (X, Y) digital readout (DRO) for precise operations and repeatable results
  • Safety guard with limit switch protection
  • Line interruption switch system needs a restart after power failure
  • Guideway and gears in headstock are all hardened and precision ground
  • Spindle foot brake incorporated in the cabinet stand for easy operation and reliable safety
  • Features 7"-3 jaw chuck, 8"-4 jaw chuck, imperial and metric gears, quick change tool posts, steady rest, follow rest,12" D1-5 camlock face plate, coolant system, full length splash guard, thread chasing dial indicator, 2 MT#3 dead centers, MT#6-MT#3 sleeve, chip tray, tool box, halogen lamp, chuck keys, hex keys, and cabinet stand (with foot brake incorporated)

Specifications

Distance Between Centers
40"
Swing Over Bed
14"
Spindle Bore
2"
Overall Width
32"
Overall Length
75"
Overall Height
53"
Swing Over Cross Slide
8-5/8"
Taper In Headstock
MT #6
Taper In Tailstock
MT # 3
Width Of Bedways
7-5/16"
Total Traverse Of Cross Slide
6-3/16"
Total Travel Of Top Slide
3-1/2"
Spindle Speeds
8 (70-2,000) RPM
Thread Cutting Range
34 (4-56 TPI) 26 (0.4-7 mm)
Motor
11 Amp
