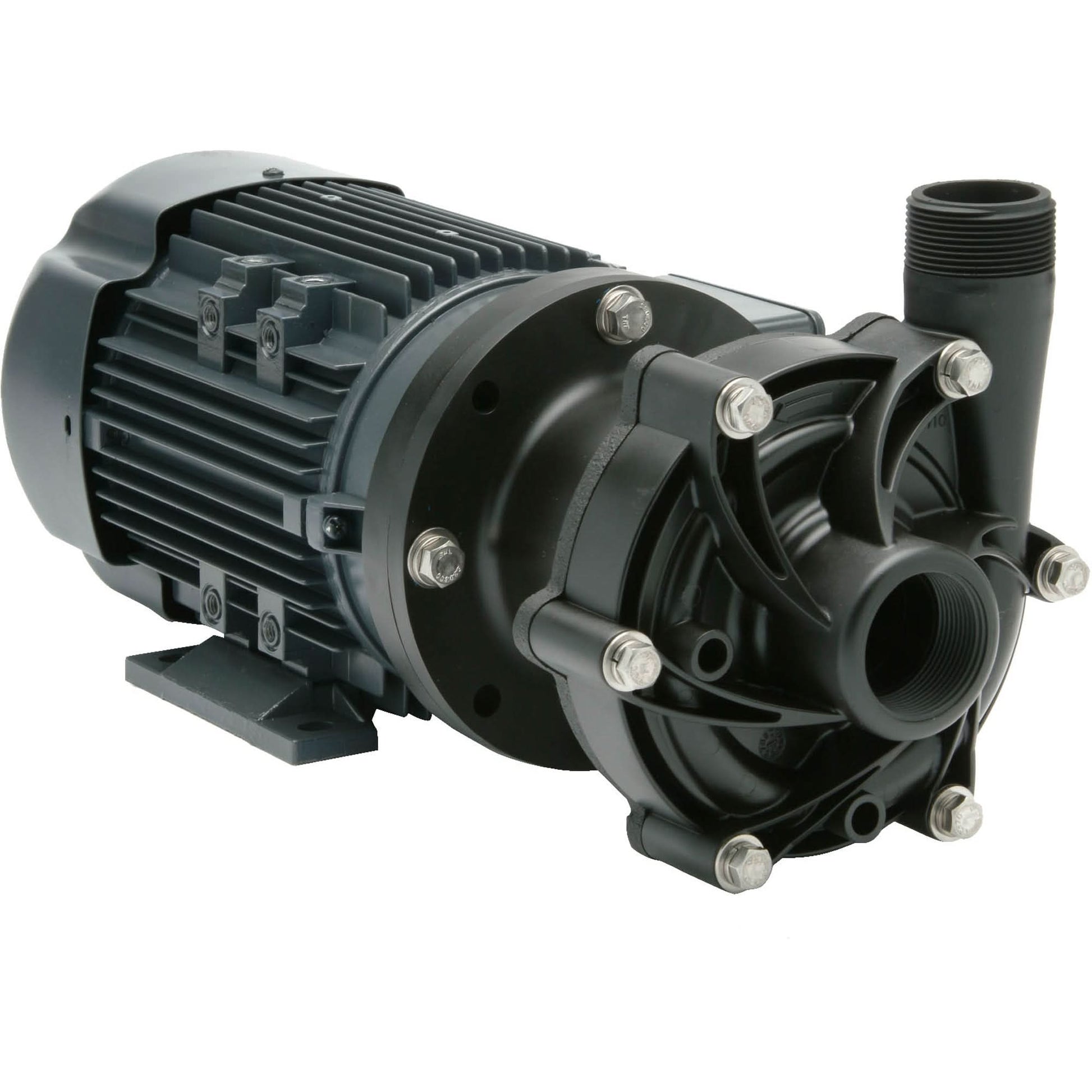

Magnetic Drive Pump with PTFE Bushing

Magnetic Drive Pump with PTFE Bushing

$3,191.00 CAD
$3,191.00 CAD
Sale Sold out
Shipping calculated at checkout.

  • High operating efficiency
  • Powerful neodymium magnets
  • Close-coupled design
  • Threaded NPT connections
  • Horizontal or vertical installation
  • Back pullout design
  • Mounts to IEC 56, 63, 71 B14 motor frames
  • Easy set, measurement free drive
  • CE certified
  • Working pressure to 60 psi (4.1 bar)
  • Specific gravity up to 1.8
  • Viscosity up to 50 cP

Specifications

Intake Size
1-1/2"
Discharge Port Size
1-1/2"
Motor
1-1/2 HP
Suction Head
51'
Connection Type
NPT
Impeller Size
3.75"
Magnet Type
10-Pole
Material
PVDF
Max. Flow
96 GPM
Full Load Amp
1.97 FLA
Motor Frame Size
56C
Voltage
208-230-460
