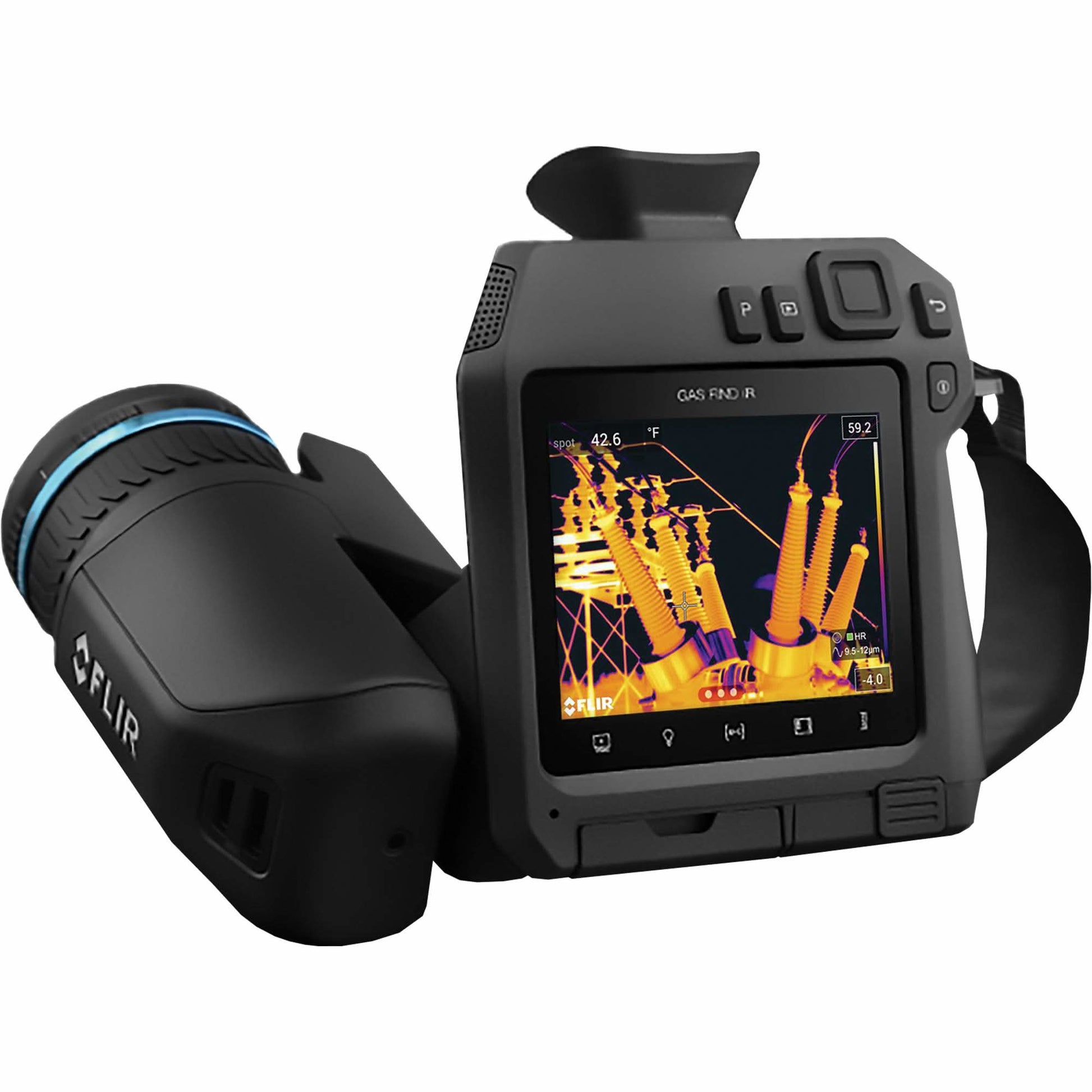

GF77 Gas Find IR with 25° LR, 6° LR & 25° HR Lens, 320 x 240 pixels, 25 mK/40 mk

GF77 Gas Find IR with 25° LR, 6° LR & 25° HR Lens, 320 x 240 pixels, 25 mK/40 mk

$65,690.00 CAD
$65,690.00 CAD
Sale Sold out
Shipping calculated at checkout.

Specifications

Display Size
4"
Display Type
Built-in
Resolution
320 x 240 pixels
Thermal Sensitivity
25 mK/40 mk
Gas Sensitivity (NECL)
LR lens: CH4: <100 ppm × m, N2O: <75 ppm × m, C3H8: <400 ppm × m, SO2: <30 ppm × m, R-134a: <20 ppm × m, R-152a: <100 ppm × m HR lens: SF6: <1 ppm × m, C2H4: <20 ppm × m, NH3: <20 ppm × m, R-12: <4 ppm × m (ΔT = 10°C, Distance = 1 m)
Detector Pitch
25 µm
Accuracy
≤100 °C ±3°C (±5.4°F), >100°C ±3% for Ambient Temperature 15 to 35°C (59 to 95°F)
Spectral Range
LR: 7-8.5 µm, HR: 9.5-12 µm
Field Of View (FOV)
25° Lens: 25° × 19°, 6° Lens: 6.4° × 4.9°
Focal Length
25° Lens: 18 mm (0.71 in.), 6° Lens: 74 mm (2.9 in.)
Image Frequency
30 Hz
Min. Focus Distance
25° Lens: 0.3 m (0.98 ft), 6° Lens: 5 m (16.4 ft)
Battery Operating Time
>4 hours at 25°C (68°F) with Typical Use
Country Of Origin
Sweden
