Stratosphere Distribution

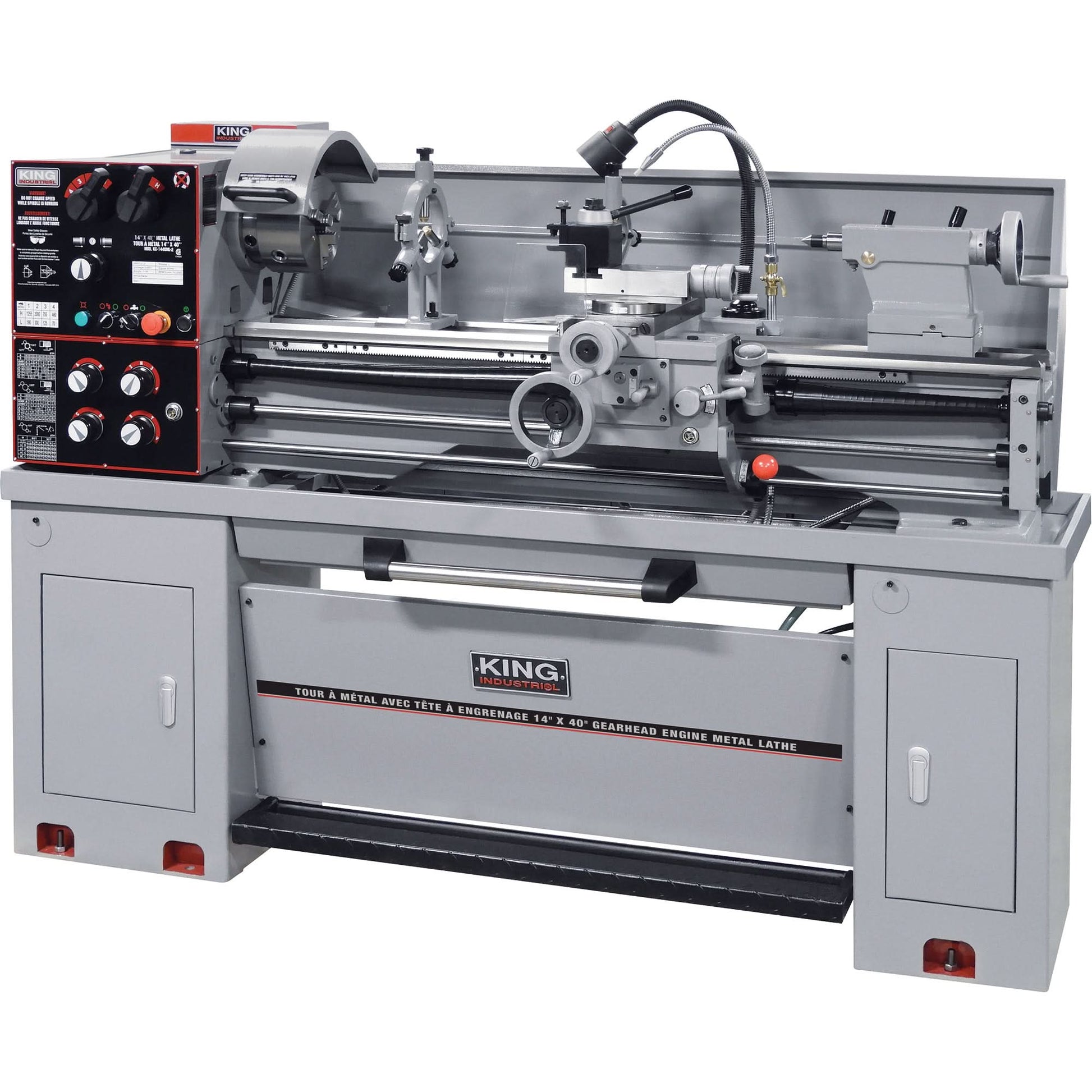

Gearhead Metal Lathes- With Taper Attachment, 75" L x 32" W x 53" H

Gearhead Metal Lathes- With Taper Attachment, 75" L x 32" W x 53" H

$13,895.00 CAD
$13,895.00 CAD
Sale Sold out
Shipping calculated at checkout.

  • Safety guard automatically shuts lathe off when lifted
  • Full length spindle foot brake incorporated in the cabinet stand for easy operation and reliable safety
  • Includes: 6" 3-jaw chuck, 8" 4-jaw chuck, replacement gears, quick change tool post, steady rest, follow rest, 12" DI-4 camlock face plate, coolant system, full length splash guard, thread chasing dial indicator, 2 MT#3 dead centers, JT#5-MT#3 sleeve, chip tray, tool box, halogen lamp, chuck keys, hex keys and cabinet stand

Specifications

Distance Between Centers
40"
Swing Over Bed
14"
Spindle Bore
2"
Overall Width
32"
Overall Length
75"
Overall Height
53"
Swing Over Cross Slide
8 5/8"
Taper In Headstock
MT#6
Taper In Tailstock
MT#3
Total Travel Of Cross Slide
6 3/16"
Total Travel Of Top Slide
3 1/2"
Spindle Speeds
8 (70-2000 RPM)
Thread Cutting Range
34 (4-56 TPI) 26 (.4-7 MM)
Motor
2 HP, 11 A, 1 phase, 60 Hz
Voltage
240 V
