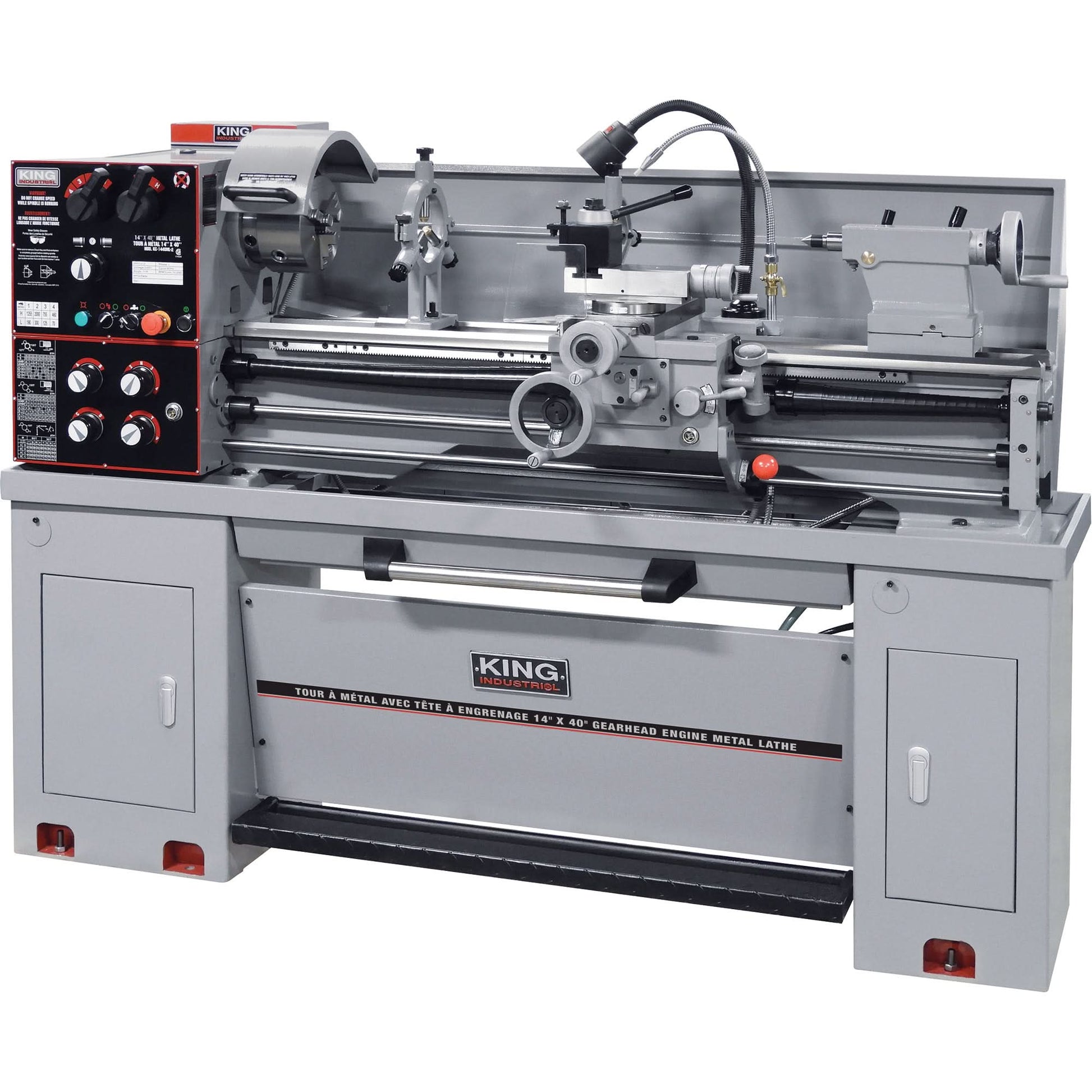

Gearhead Metal Lathes, 75" L x 32" W x 53" H

Gearhead Metal Lathes, 75" L x 32" W x 53" H

$13,106.00 CAD
$13,106.00 CAD
Sale Sold out
Shipping calculated at checkout.

  • w/o taper attachments
  • Safety guard automatically shuts lathe off when lifted
  • Full length spindle foot brake incorporated in the cabinet stand for easy operation and reliable safety
  • Includes: 7"-3 jaw chuck, 8"-4 jaw chuck, imperial and metric gears, quick change tool posts, steady rest, follow rest, 12" D1-5 camlock face plate, coolant system, full length splash guard, thread chasing dial indicator, 2 MT#3 dead centers, MT#6-MT#3 sleeve, chip tray, tool box, halogen lamp, chuck keys, hex keys and cabinet stand (with foot brake incorporated)
  • Weight: 2025 lbs.

Specifications

Distance Between Centers
40"
Swing Over Bed
14"
Spindle Bore
2"
Overall Width
32"
Overall Length
75"
Overall Height
53"
Swing Over Cross Slide
8 5/8"
Taper In Headstock
MT#6
Taper In Tailstock
MT#3
Total Travel Of Cross Slide
6 3/16"
Total Travel Of Top Slide
3 1/2"
Spindle Speeds
8 (70-2000 RPM)
Thread Cutting Range
34 (4-56 TPI) 26 (.4-7 MM)
Motor
2 HP, 11 A, 1 phase, 60 Hz
Voltage
240 V
