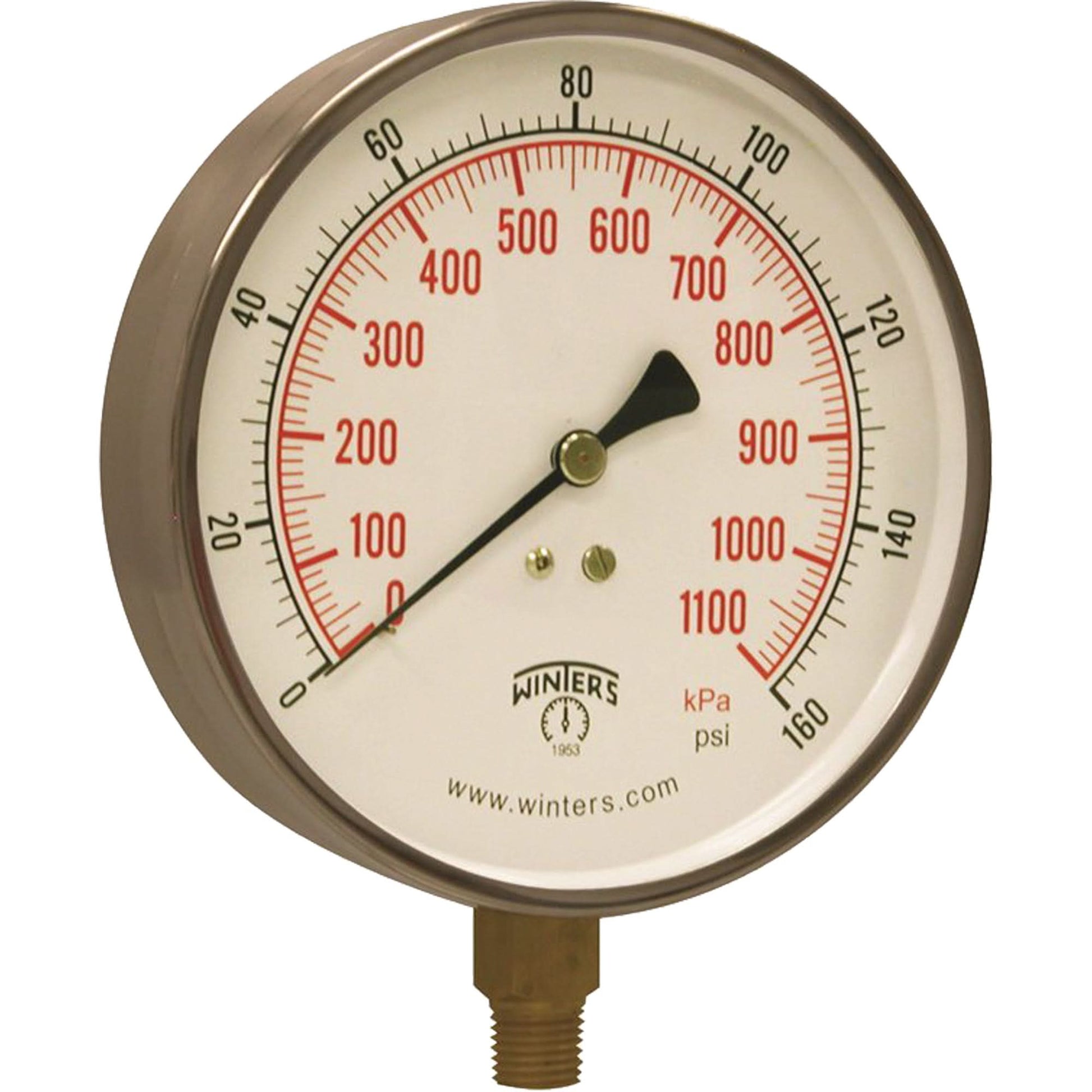

Contractor Pressure Gauge, 4-1/2" , 0 - 160 psi, Bottom Mount, Analogue

Contractor Pressure Gauge, 4-1/2" , 0 - 160 psi, Bottom Mount, Analogue

$71.90 CAD
$71.90 CAD
Sale Sold out
Shipping calculated at checkout.

Specifications

Dial Diameter
4-1/2"
Pressure Range
0 - 160 psi
Connection
Bottom Mount
Dial Type
Analogue
Connection Thread
1/4" NPT
Accuracy
±1% ANSI/ASME Grade 1A
IP Rating
IP52
Case & Ring Material
304 Stainless Steel
Lens Material
Acrylic
Bourdon Tube Material
Phosphor Bronze
Over-Pressure Limit
25% for Pressures up to 1450 psi (9998 kPa), 15% for Pressures Over 1450 psi (9998 kPa)
Working Pressure
Maximum 75% of Full Scale Value
