Stratosphere Distribution

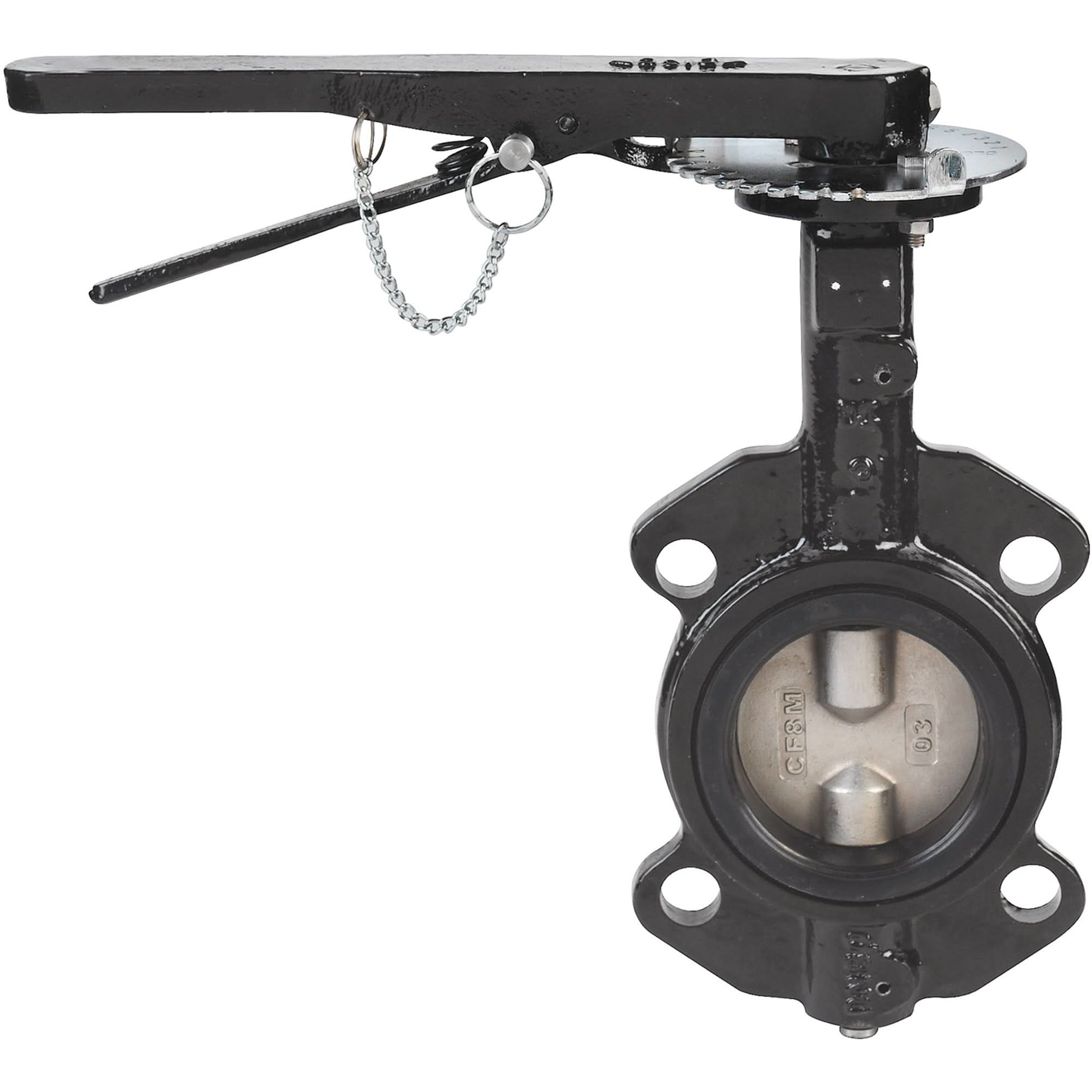

Butterfly Valves - Series BFV, 5" Pipe, 225 PSI

Butterfly Valves - Series BFV, 5" Pipe, 225 PSI

$858.00 CAD
$858.00 CAD
Sale Sold out
Shipping calculated at checkout.

  • CV VALUES
  • Butterfly Valves - Series BFV-LOW COST, LEVER OPERATED, LUG OR WAFER PATTERN, 225 PSIG ; Service: Compatible liquids, gases and steam ; Line Size: 2" to 12" ; Body Style: 2-way, wafer or lug butterfly ; End Connections: Flange, to be used with flanges that are ANSI Class 125 (B16.1) and ANSI Class 150 (B16.5) dimensions ; Pressure Limits: 225 PSI (151.5 bar) WOG ; Wetted Materials: Body: Ductile iron ; Disc: 316 SS ; Seat and O-ring: EPDM or PTFE ; Stem: 410 SS ; Temperature Limits: EPDM: -50 to 250 °F (-46 to 121 °C). ; PTFE; 0 to 300 °F (-18 to 149 °C) ; Bearings: Nylatron ; Flow Rate: See Cv chart ; Operator: 2 to 6": 10-position locking hand lever. 8 to 12": manual gear
  • Full Open 90 °: 1022

Specifications

Pipe Size
5"
Max. Pressure
225 PSI
Type
Wafer
Liner
EPDM
Degree Opening 10 °
0.8
Degree Opening 20 °
29
Degree Opening 30 °
61
Degree Opening 40 °
133
Degree Opening 50 °
237
Degree Opening 60 °
392
Degree Opening 70 °
620
Full Open 80 °
930
