Stratosphere Distribution

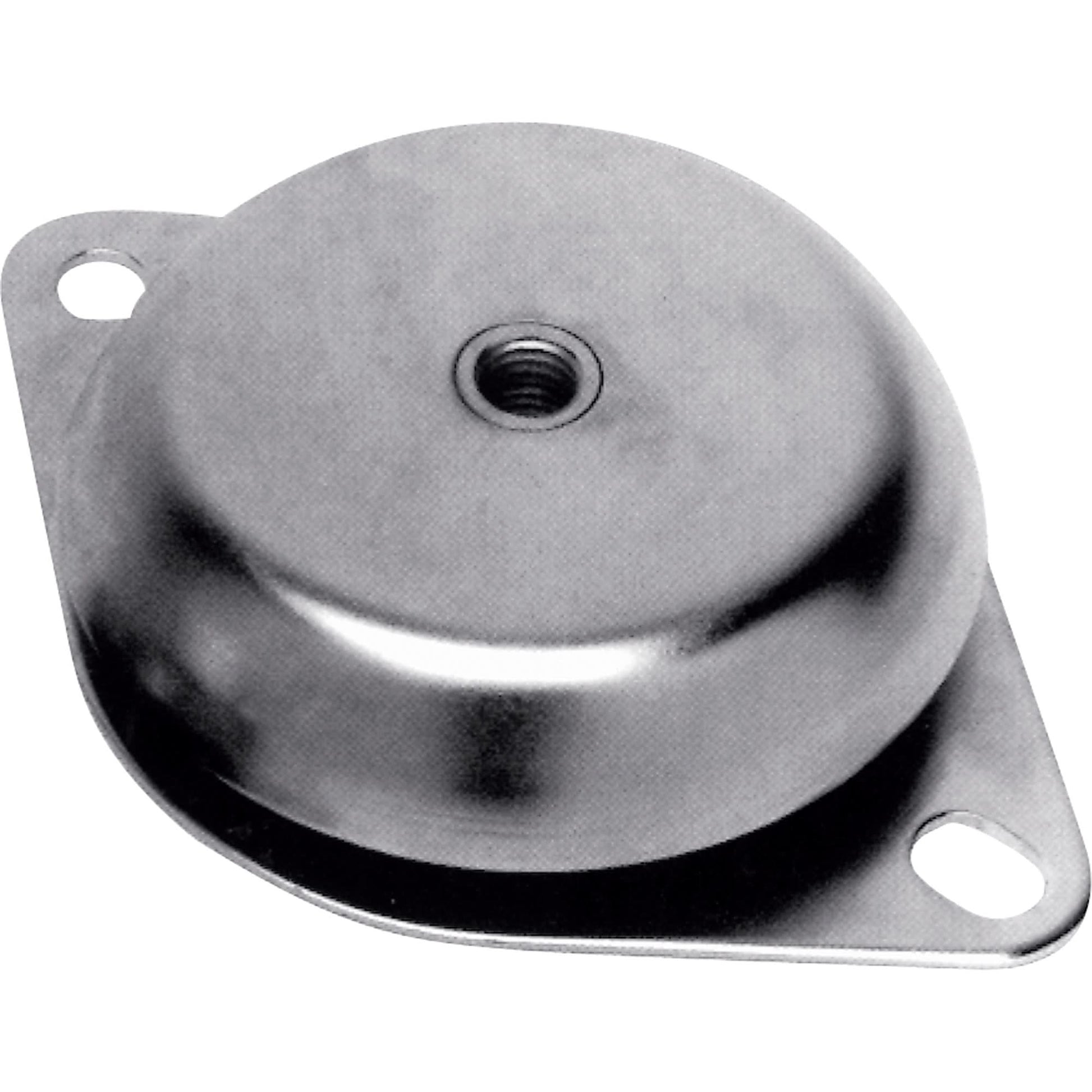

Anti-Vibration Cupmounts

Anti-Vibration Cupmounts

$137.00 CAD
$137.00 CAD
Sale Sold out
Shipping calculated at checkout.

  • High vibration dampening characteristics
  • Fail-safe, rugged interlocking metal and neoprene construction provides exceptional performance against shear and compression forces and flexible vertically and stable horizontally
  • Metal cupmount component is cold-rolled steel coupled with an elastomer-in-compression design
  • High-grade neoprene elastomer provides resistance to oil and ozone
  • Each side flange has through holes allowing for effective attachment to supporting equipment structure

Specifications

Overall Length
6"
Overall Height
1-3/8"
Maximum Load In Lbs. Non-Impact Machinery
400
Maximum Load In Lbs. Impact Machinery
250
Mount Dimensions In Inches A
6
Mount Dimensions In Inches B
2.75
Mount Dimensions In Inches C
5
Mount Dimensions In Inches D
3.625
Mount Dimensions In Inches H
1.375
Mount Dimensions In Inches T
41276
